Open-loop Hall effect current sensor HJ series
panel-mountACDC

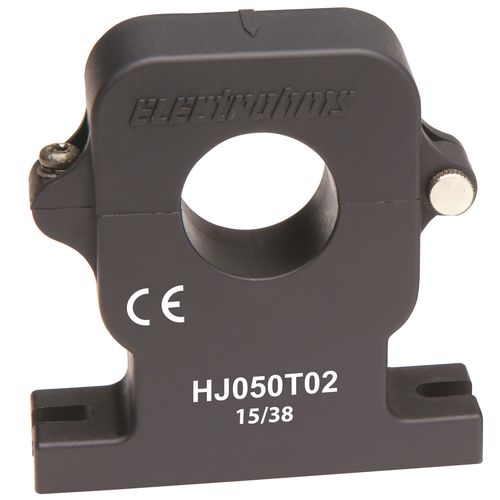

Open-loop Hall effect current sensor - HJ series - Electrohms - panel-mount / AC / DC

Open-loop Hall effect current sensor - HJ series - Electrohms - panel-mount / AC / DC - image - 2

Open-loop Hall effect current sensor - HJ series - Electrohms - panel-mount / AC / DC - image - 3

Open-loop Hall effect current sensor - HJ series - Electrohms - panel-mount / AC / DC - image - 4

Open-loop Hall effect current sensor - HJ series - Electrohms - panel-mount / AC / DC - image - 5

Add to favorites

Compare this product

Characteristics

Technology

open-loop Hall effect

Mounting

panel-mount

Electrical characteristics

AC, DC

Other characteristics

split-core

Primary current

Max.: 500 A

Min.: 50 A

Description

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations. KEY FEATURES •DC, AC current measurements with Galvanic isolation •Split core or Clamp on current sensors •Extended measuring range in the same package •Single supply operated +5V •Low power consumption •Good accuracy at nominal currents •Panel mounting RELATED APPLICATION •Battery energy management •Telecom power supplies •DC Energy Management SPECIFICATION Product NoHJ050T02 Ipn (A)50 IpMax (A)±100 Sup. Voltage(V) +5.0 Iout/Vout @Ipn 2.5 ± 1.0 V Bandwidth-3dB(kHz)DC - 20 Accuracy % ± 2.0 Secondary TerminationConnector Header Mounting TypePanel
