Open-loop Hall effect current sensor HK series
panel-mountACDC

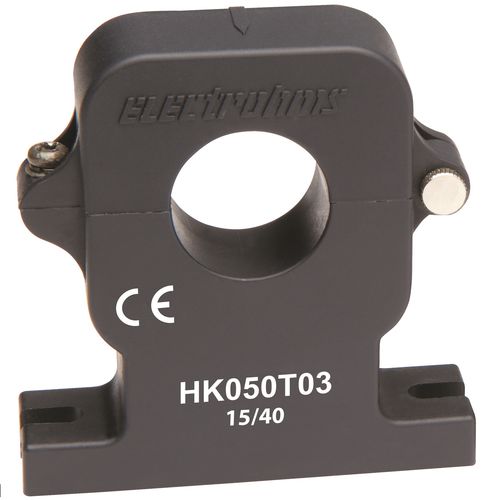

Open-loop Hall effect current sensor - HK series - Electrohms - panel-mount / AC / DC

Open-loop Hall effect current sensor - HK series - Electrohms - panel-mount / AC / DC - image - 2

Open-loop Hall effect current sensor - HK series - Electrohms - panel-mount / AC / DC - image - 3

Open-loop Hall effect current sensor - HK series - Electrohms - panel-mount / AC / DC - image - 4

Open-loop Hall effect current sensor - HK series - Electrohms - panel-mount / AC / DC - image - 5

Add to favorites

Compare this product

Characteristics

Technology

open-loop Hall effect

Mounting

panel-mount

Electrical characteristics

AC, DC

Other characteristics

split-core

Primary current

Min.: 50 A

Max.: 500 A

Description

Hall Effect Current Sensor, Split Core Open Loop Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations. KEY FEATURES •DC, AC current measurements with Galvanic isolation. •Split core Or Clamp on current sensors •50 to 500A open loop Hall effect current sensor with 20mm ID opening •Extended measuring range in the same package •Dual supply operated ±12 to ±15V •Low power consumption •Good accuracy at nominal currents •Panel mounting RELATED APPLICATION •1. DC energy meters. •2.Telecom power supplies •3. Battery energy management SPECIFICATION Product NoHK050T03 Ipn (A)50 IpMax (A)±100 Sup. Voltage(V) ±12 ... ± 15 Iout/Vout @Ipn ± 4.0 V Bandwidth-3dB(kHz)DC - 20 Accuracy % ±2.0 Secondary TerminationConnector Header Mounting TypePanel
