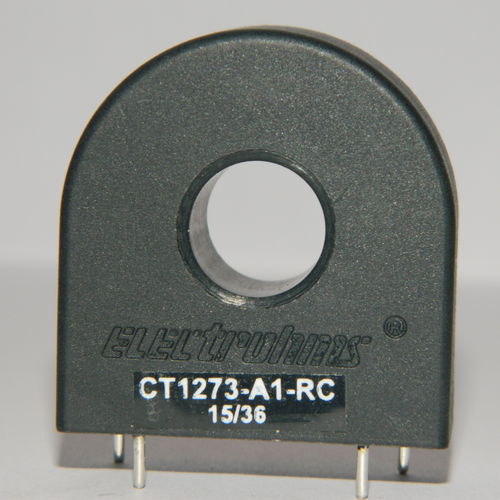

Current transformer CT1273-A1-RCencapsulatedfor energy metersPCB
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- for energy meters
- Mounting
- PCB
- Other characteristics
- high-accuracy
- Primary current
100 A
Description
High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .
KEY FEATURES
•High Precision AC whole current transformer
•Low Amplitude Error & Phase error
•High Linearity
•Temperature coefficient
RELATED APPLICATION
•Energy management
SPECIFICATION
Product NoCT1273-A1-Rc
Ipn RMS(A)100
Turn Ratio1 : 2500
Pri. Opening (mm)11.5
Temp. Operating -40°C ... +70°C
Secondary TerminationPin Terminals
Mounting TypePCB
Rb (Ohms)7.5
AE %0.1
PE (Deg)0.2
DCR (Ohms)37 - 47
