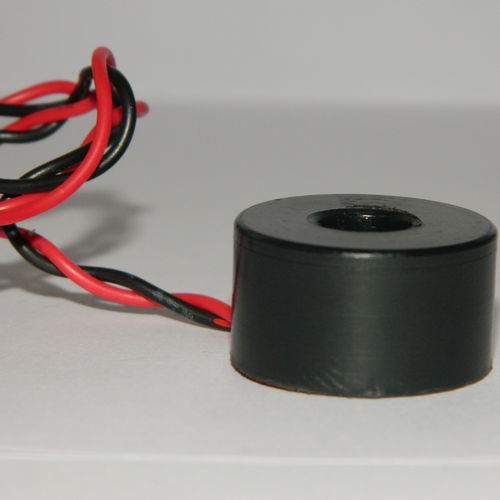

Current transformer CT1202-RCcast resinindustrialPCB
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- cast resin
- Applications
- industrial
- Mounting
- PCB
- Other characteristics
- control, protection
- Primary current
40 A
Description
Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment
RELATED APPLICATION
Motor protection/Control/monitoring
SPECIFICATION
Product No CT1202-RC
Ipn RMS(A) 40
Turn Ratio 1 : 1000
Pri. Opening (mm) 9.0
Temp. Operating -20°c ... +70°c
Secondary Termination Flyleads
Mounting Type ---
Rb (Ohms) 100
AE % ...
PE (Deg) ...
DCR (Ohms) 36 - 46
