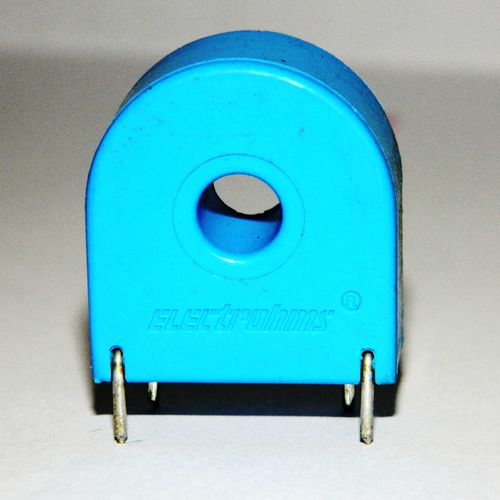

Current transformer CT1177-C1encapsulatedfor energy meterssingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- for energy meters
- Electrical characteristics
- single-phase
- Mounting
- PCB
- Other characteristics
- high-accuracy
- Primary current
20 A
Description
High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .
KEY FEATURES
•High Precision AC whole current transformer
•Low Amplitude Error & Phase error
•High Linearity
•Temperature coefficient
RELATED APPLICATION
•Energy management
•Smart Meter
SPECIFICATION
Product NoCT1171- C1
Ipn RMS(A)20
Turn Ratio1 : 2500
Pri. Opening (mm)6.3
Temp. Operating -10°c ... +60°c
Secondary TerminationPin Terminals
Mounting TypePCB
Rb (Ohms)90
AE %0.5
PE (Deg)0.5
DCR (Ohms)98 - 120
Catalogs
No catalogs are available for this product.
See all of Electrohms‘s catalogs
