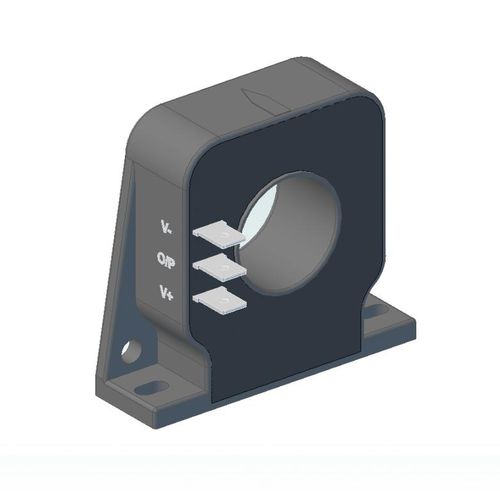

Closed-loop Hall effect current sensor HE series

panel-mountACDC

These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc RELATED APPLICATION •AC variable speed drives and servo motor drives •. Static converters for DC motor drives •. Battery supplied applications •. Uninterruptible Power Supplies(Ups) •. Switched Mode Power Supplies(SMPS) •. Power suppliers for welding applications. SPECIFICATION Product NoHE050T04 Ipn (A)50 IpMax (A)± 75 Sup. Voltage(V) ±15 Iout/Vout @Ipn 25 mA Bandwidth-3dB(kHz)DC - 100 Accuracy % ±0.8 Secondary TerminationTab Terminals Mounting TypePanel
