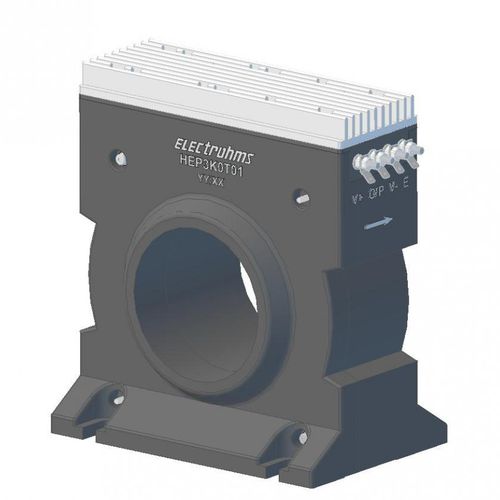

Closed-loop Hall effect current sensor HEP3K0T01panel-mountACDC
Add to favorites
Compare this product
Characteristics
- Technology
- closed-loop Hall effect
- Mounting
- panel-mount
- Electrical characteristics
- AC, DC
- Other characteristics
- solid-core
- Primary current
3,000 A
Description
KEY FEATURES
•Low Amplitude Error & Phase Error.
•Isolated plastic case recognized according to UL 94-V0.
RELATED APPLICATION
•AC variable speed drives and servo motor drives
•Static converters for DC motor drives
•Battery supplied applications
•Uninterruptible Power Supplies (Ups)
•Switched Mode Power Supplies (SMPS)
•Power suppliers for welding applications.
SPECIFICATION
Product NoHEP3K0T01
Ipn (A)3000
IpMax (A)5000
Sup. Voltage(V) ±24
Iout/Vout @Ipn 600 mA
Bandwidth-3dB(kHz)DC - 100
Accuracy % ±0.3
Secondary TerminationTab Terminals
Mounting TypePanel
Catalogs
Current sensors and Voltage sensors
144 Pages
