Closed-loop Hall effect current sensor HE series
panel-mountACDC

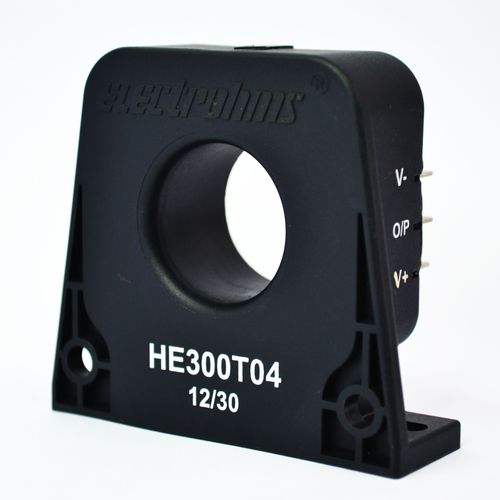

Closed-loop Hall effect current sensor - HE series - Electrohms - panel-mount / AC / DC

Closed-loop Hall effect current sensor - HE series - Electrohms - panel-mount / AC / DC - image - 2

Closed-loop Hall effect current sensor - HE series - Electrohms - panel-mount / AC / DC - image - 3

Closed-loop Hall effect current sensor - HE series - Electrohms - panel-mount / AC / DC - image - 4

Closed-loop Hall effect current sensor - HE series - Electrohms - panel-mount / AC / DC - image - 5

Add to favorites

Compare this product

Characteristics

Technology: closed-loop Hall effect
Mounting: panel-mount
Electrical characteristics: AC, DC
Other characteristics: solid-core
Primary current: 300 A, 500 A

Description

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc KEY FEATURES •DC, AC and pulsated current measurements with Galvanic isolation. •300A closed loop Hall effect current sensor with 25mm ID opening. •Dual supply operated ±12 to ±15V. 4. Fast response time. •No insertion losses,Excellent accuracy. •low temperature drifts. RELATED APPLICATION •Auxilary converters in Railways •Industrial Inverter/UPS •Electronic rectified regulated unit SPECIFICATION Product NoHE300T04 Ipn (A)300 IpMax (A)±500 Sup. Voltage(V) ±12 ... ± 15 Iout/Vout @Ipn 150 mA Bandwidth-3dB(kHz)DC - 100 Accuracy % ±0.8 Secondary TerminationPIN Terminals Mounting TypePanel
