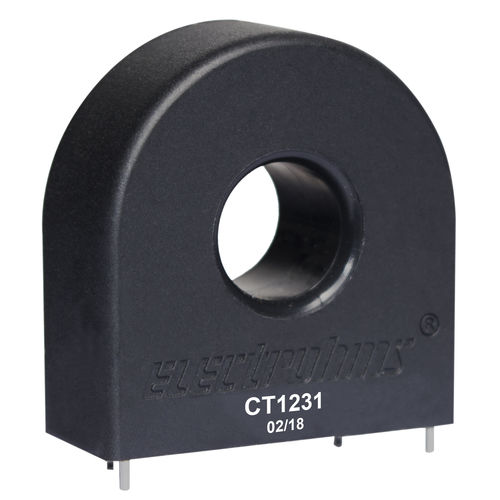

Current transformer CT1231-A1instrumentencapsulatedfor energy meters
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument
- Configuration
- encapsulated
- Applications
- for energy meters
- Electrical characteristics
- single-phase
- Mounting
- PCB
- Primary current
30 A
Description
Current transformers for energy meters single phase and three phase metering in Residential Metering applications.
KEY FEATURES
•High Linearity
•Low cost
•PCB Mountable
•High Over current withstand capability
RELATED APPLICATION
•Metering application
•Relay application
SPECIFICATION
Product NoCT1231-A1
Ipn RMS(A)30
Turn Ratio1 : 2500
Pri. Opening (mm)6.3
Temp. Operating -10°c ... +60°c
Secondary TerminationPin Terminals
Mounting TypePCB
Rb (Ohms)30
AE %<0.3
PE (Deg)<1.0
DCR (Ohms)145
Catalogs
No catalogs are available for this product.
See all of Electrohms‘s catalogs
