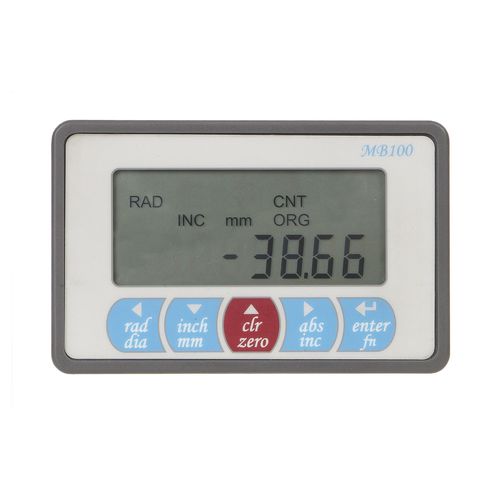

Length measuring system MB100

linearangular

MB100 DRO is 1 Axis Digital Measuring System which replaces old and worn outs ruler measurement guides, making it suitable for use in table saw, wall saw, pillar drills etc.. It comprises of highly robust integrated reader head, with cut to length measuring tape which makes it suitable for both linear and angular measurement. MB100 has a long battery life and Magnetic tape comes with self-adhesive back tape which makes it durable and easy to install. MB100 also comes with guided scale option where DRO is mounted on moving carriage. Product Functions Inch/metric conversion Direction Selection Absolute / incremental modes Radius/Diameter Reference 3 x user definable Linear / Angular selection Resolution(Linear) 0.1mm or 0.01mm Resolution(Angular 0.1° or 0.01°
