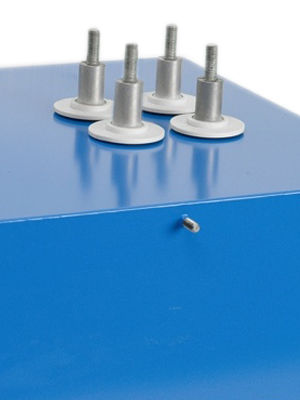

Module capacitor E56 / E59

filterover-voltageAC

Thanks to the special kind of films and coating patterns used in our E56/E59-capacitors, clever winding geometries and refined internal construction, they unite large capacitance, very small self-inductance and high surge current sustaining capability (up to 700kA) as well as the possibility of high rms currents (up to 750A). Instead of flat pack windings, our capacitance is formed by compact cylindrical windings, avoiding the mechanical stress and instabilities at the edges of flat packs. Special terminals allow for additional reduction of the self-inductance. At the same time, they are extremely overvoltage-proof. They are especially suited for buffer storage circuits of converters, filter circuits and such like. The capacitors are housed in aluminium or steel cases and filled with solid resin which makes them absolutely dry and leakage-proof. Their shape and dimensions can be adapted to the individual requirements of our customers.
