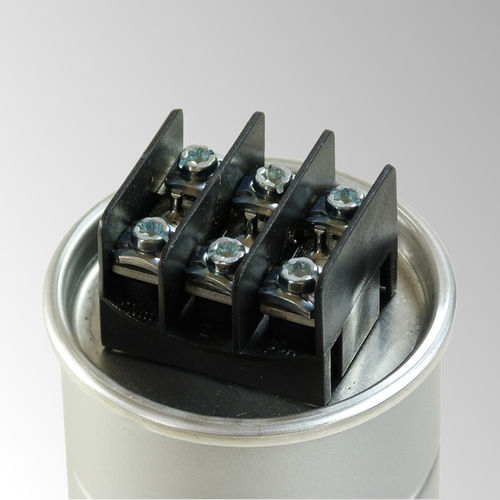

Cylindrical capacitor E62-3HF

ACthree-phasefor power electronics

E62-3HF with CAPAFIX™ and CAPASTUD™ terminals is the perfect AC Capacitor for High Frequency Filters It is the perfect evolution of our renowned E62-3ph series: E62-3HF answers the growing demand for single and three-phase AC capacitors that can withstand AC currents in the kHz range. CAPAFIX™ is the new name of our optimized low-loss TORX terminals which can operate safely even at very high frequencies. They are also preferred by some as a flat alternative to the traditional, taller CAPAGRIP™ terminal. The two sizes of CAPAFIX™ – Z3 (up to 39A per phase) and S4 (up to 56A/phase) – are complemented by the robust CAPASTUD™ with M10 studs that can withstand up to 100A per phase. Both CAPAFIX™ terminals are also used for single phase AC capacitors in the E62 range. They can be completed with an optional snap-on cover for protection from accidental contact (similar to IP10).
