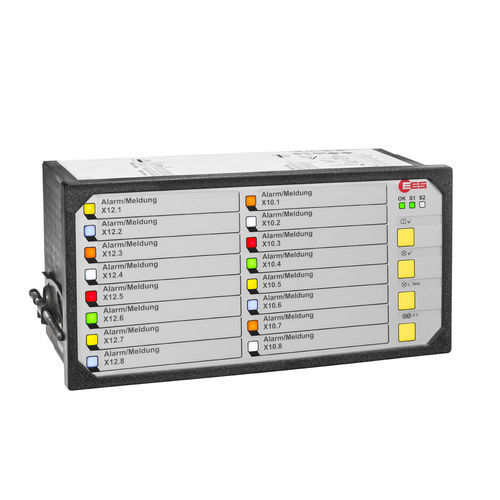

Modbus RTU fault annunciator BSM-P

panel-mounted

The flexible fault annunciator series BSM-P - easily and flexibly adapted to your application. The BSM-P is available in 6 different sizes from 8 to 48 signal inputs. Because of its easy and intuitive handling and parameterisation via software the BSM-P is suitable for all more demanding annunciator tasks. Numerous options like integrated repeat relays, redundant power supply or scalability to up to 192 signal inputs allow for an optimal adaption to the respective application. New features like status retention in the case of power failure, bigger LED-areas or switching to unmanned operation ensure the information integrity on-site at any time. EPLAN macros facilitate the design and documentation of circuit diagrams. These are available free of charge in the download area. Optionally, the BSM-P can be provided with a Modbus RTU interface, both for displaying states received via the serial interface and for forwarding processed states to further systems. 6 bright colour with very large reading angle Very bright RGB-LEDs provide the easy parameterisation of the colour in operation (green, red, yellow, amber, blue and white) by buttons or via webinterface and provide a very large reading angle. Multiply and forward every single alarm Integrated Relay outputs offer the possibility to multiply and forward every single alarm - in one compact device and without having to use additional modules. Either 1:1 configuration or in other ratios with free assignment can be achieved. Devices with 24 or 40 signal inputs Additional devices with 24 or 40 signal inputs round the portfolio off. You can now choose between six different annunciator sizes from 8 to 48 inputs.
