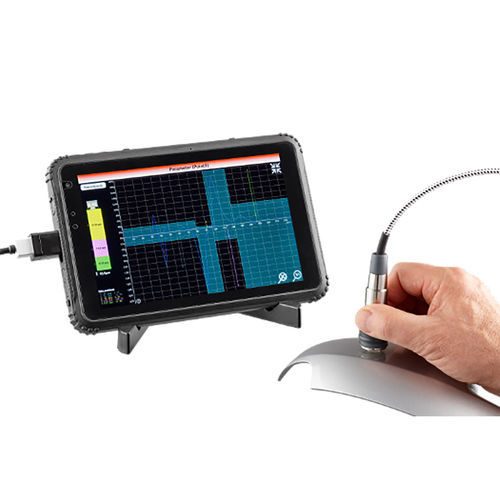

Portable thickness gauge QuintSonic T

coatingultrasonicA-scan

QuintSonic T: All measuring parameters on one screen QuintSonic T measures of up to eightcoatings in a single operation. It can measure polymer coatings such as paints, varnishes and synthetic material, as well as glass, ceramic or metallic coatings on virtually any substrate. Precise and easy to handle, QuintSonic T can measure all typical coating systems such as: • Lacquers on synthetic material • Synthetic material on wood • Glass on metal • and many more. Featuring a generous 8-inch display, QuintSonic offers a user-friendly overview of the result of measurement as well as the corresponding course of the ultrasonic signal (A-scan). Parameters for signal adjustment are displayed simultaneously and can thus bie adapted to the current measurement with significant time savings. Subsequient adjustment of parameters is also possible through the new memory option for A-scans. In addition, QuintSonic T is characterized by simple handling via touch screen and intuitive user guidance. The measuring program also offers a clear data structure with integrated test report generation. QuintSonic T is also ideally suited for harsher environments due to IP 67 & MIL-STD 810 G and extremely resistant Gorilla® glass.
