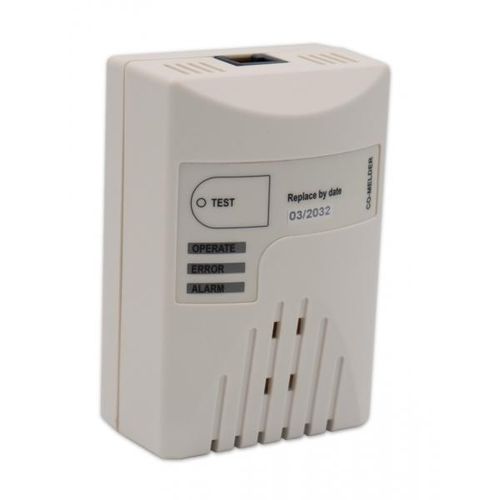

Acoustic monitoring device

carbon monoxidealarmdevice

Monitoring device for safety shutdown of the boiler in case of carbon monoxide leakage. Alarm threshold: 50 ppm CO according to DIN EN 50 291-1 This device is designed to protect people from the topical effects of carbon monoxide contact. CO sensor service life max: approx. 6 years (max. 40°C, min. 40% rH), approx. 10 years (max. 28°C, 30% rH) Important warnings: The following substances can influence the CO detector and possibly trigger a false alarm. Therefore, they must not be used in the room where CO detector is installed: Ethylene, ethanol, alcohol, iso-propanol, gasoline, toluene, ethyl acetate, hydrogen, hydrogen sulfide and sulfur dioxides. Persons with specific medical conditions may not be adequately protected by the CO detector and should use a warning device that produces audible and/or visible signals even at carbon monoxide concentrations below 50ppm. If in doubt, consult a physician. PERFORMANCE FEATURES Double safety through acoustic and optical warning function and automatic shutdown of the connected appliance in case of gas leakage Detection of carbon monoxide (CO) according to DIN EN 50291 TÜV-tested Regular automatic self-test function intelligent self-test, long-life electrochemical sensor, test button and more. POSSIBLE APPLICATIONS for gas heaters, gas heating, gas cookers, gas furnaces, oil heating and any combustion facility with supply CO sensor service life max: approx. 6 years (max. 40°C, min. 40% rH), approx. 10 years (max. 28°C, 30% rH) SCOPE OF DELIVERY CO detector 2 keyholes on rear wall, 2 screws/dowels each enclosed
