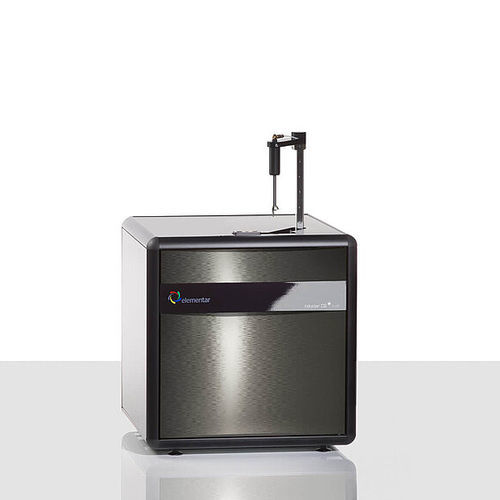

Sulfur analyzer inductar® CS cube
metalcarbonfor inorganic materials

Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 2
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 3
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 4
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 5
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 6
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 7
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 8
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 9
Sulfur analyzer - inductar® CS cube - Elementar - metal / carbon / for inorganic materials - image - 10
Add to favorites
Compare this product


Characteristics

Measured entity
sulfur, metal, carbon, for inorganic materials
Application domain
laboratory, for quality control
Measured value
elemental
Configuration
benchtop, compact
Mode of use
automatic, semi-automatic
Technology
infrared
Protection level
rugged, waterproof
Other characteristics
real-time, multi-parameter, computer-controlled, oven-heated

Description

Designed from a blank page, this high-precision CS analyzer for metallic and other inorganic materials only uses state-of-the-art technologies and offers easy handling as well as low maintenance. The inductar® CS cube is equipped with a long-life solid-state high-frequency induction furnace, which makes it possible to reach sample temperatures of above 2,000 °C. Thanks to the optional camera indulive, you can observe the gas release during the sample combustion in real-time. Carbon and sulfur are both analyzed by wide-range infrared (IR) detectors, which are capable to detect the whole concentration range. Thus, also little concentrations in the low ppm-range as well as higher concentrations of some weight percent’s are detectable. Highlights of the inductar CS cube No tedious and noisy cleaning with vacuum cleaner needed thanks to the innovative crucibles and the intelligent instrument design Easy handling & low maintenance because of the intuitive software and the user-friendly, smart instrument and components design for daily routine operation Reliable, unattended 24/7 operation thanks to the various sampling options that include a fully automated autosampler with 89 positions Live process control with the integrated camera indulive that makes it possible to directly monitor the combustion process No tedious and noisy cleaning with vacuum cleaner needed A cleaner combustion than any system built in the past has ever managed is achieved with our inductar CS cube. The innovative instrument design in combination with the high ceramic crucibles reduces contamination of the system with dust and debris to an absolute minimum
