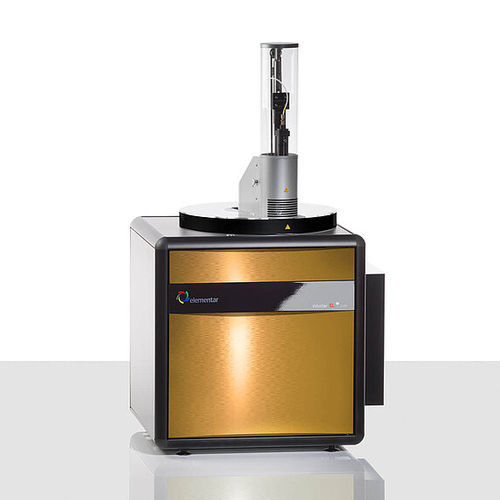

Carbon analyzer inductar® EL cube
oxygennitrogenhydrogen

Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 2
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 3
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 4
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 5
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 6
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 7
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 8
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 9
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 10
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 11
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 12
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 13
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 14
Carbon analyzer - inductar® EL cube - Elementar - oxygen / nitrogen / hydrogen - image - 15
Add to favorites
Compare this product


Characteristics

Measured entity
oxygen, nitrogen, hydrogen, sulfur, metal, carbon
Application domain
laboratory, for quality control
Measured value
elemental
Configuration
benchtop
Mode of use
automatic, semi-automatic
Technology
infrared
Detector type
TCD
Protection level
rugged, waterproof
Other characteristics
multi-parameter, high-temperature, computer-controlled, oven-heated

Description

For the very first time it is possible to analyze the concentrations of carbon, sulfur, oxygen, nitrogen and hydrogen in metals and inorganic materials with only one analyzer. The unique inductar® EL cube is a completely new developed analyzer for highly precise and flexible determination of CS and ONH. It is equipped with a long-life solid-state high-frequency induction furnace, which makes it possible to reach sample temperatures of up to nearly 3,000 °C. Furthermore, the innovative technology makes tedious cleaning of oscillator tube and electrodes needless. Highlights of the inductar EL cube All-in-one solution for CS/ONH analysis reduces investment costs and saves laboratory bench space while combining the best out of a CS and an ONH analyzer Precise results without tedious cleaning due to our innovative solid-state induction furnace technology Outstanding instrument flexibility to fulfill your analytical needs due to the customizable instrument concept that offers different modes, sample feeding options and detection options Easy handling & low maintenance because of the intuitive software and the user-friendly instrument concept for daily routine operation For the very first time it is possible to analyze the concentrations of CS/ONH in inorganic materials such as metals or ceramics with only one analyzer. Based on our experience of more than 110 years in development and manufacturing of elemental analyzers, this innovative high-temperature CS/ONH analyzer was designed.The inductar EL cube is equipped with a solid-state induction furnace for both CS and ONH analysis, which makes it possible to analyze all five elements with a single analyzer.
