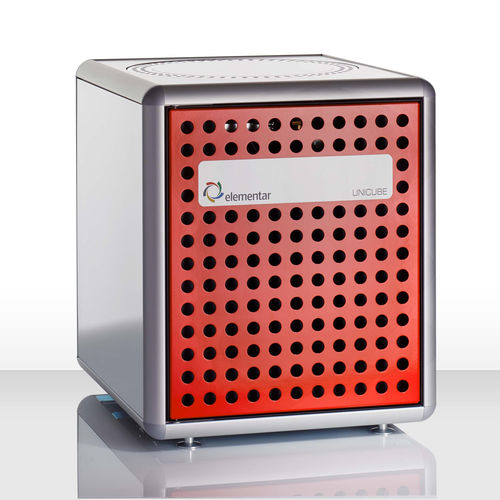

Elemental analyzer UNICUBE®

oxygennitrogenhydrogen

Meet the workhorse in elemental analysis: the UNICUBE. This elemental analyzer combines the low operating costs and the high sensitivity of a micro elemental analyzer with the dynamic measurement range of a macro analyzer. The UNICUBE is designed for simultaneous carbon, hydrogen, nitrogen, and sulfur analysis in solid and liquid samples, ranging from 0.1 mg chemical substance to 15 mg of liquid fuel to 1 g of inhomogeneous soil. Additionally, the analyzer offers options for oxygen and chlorine determination and is designed for highest system uptime thanks to its low-maintenance design. Because of its high level of automation and low noise level, the UNICUBE is especially pleasant to work with. Highlights of the UNICUBE Great sample flexibility for a wide range of elemental concentrations and sample weights, with options for oxygen and chlorine analysis Reliable, matrix-independent results even for samples that are traditionally difficult to combust Outstanding hydrogen and sulfur measurement capabilities including simultaneous CHNS analysis even for sub-µg sulfur concentrations High system uptime thanks to low-maintenance design Great sample flexibility thanks to direct Temperature Programmed Desorption (direct TPD) technology Through the use of our direct TPD technology, which stands for highest reliability and performance in gas separation, and in combination with the most powerful detector on the market, the UNICUBE offers great sample flexibility. The direct TPD technology guarantees a large dynamic measurement range, enabling the analysis of samples with C:N and C:S elemental ratios of up to 12,000:1 with reliable baseline separation.
