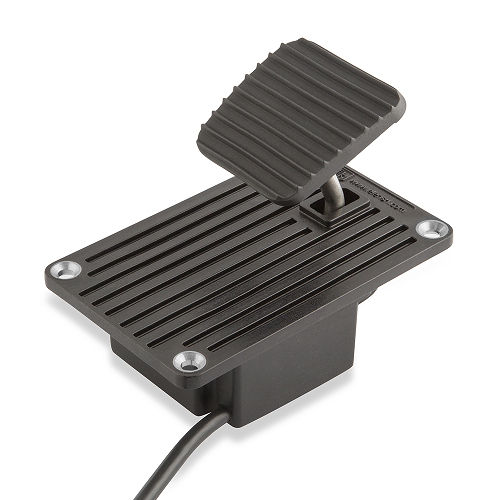

Accelerator pedal NOMOS

Hall effectsingle pedalcompact

The Nomos series compact accelerator pedals integrate all of Elen's know-how on programmable sensors in a product designed for electric or combustion engine work vehicles: the output signal and the threshold of IVS triggers are obtained thanks to the board's firmware, starting solely from the rotation of the lever pin. SUITABLE FOR warehouse trucks, ride-on scrubbers and sweepers, electric vehicles, indoor special vehicles. VERSATILITY Supply voltage: 5 V; 12-24V; 24-48 V Output: single / double; option IVS signal Output types (programmable): voltage (0,5-4,5V; 0-10V) or current (4-20 mA) analog signal; PWM (0.1-1 kHz); CAN (SAE J1939 / CANopen) IVS types: single / double; NO / NC; dry contact / open drain; programmable switch threshold Cable and connector: customizable RELIABILITY Operating principle: Hall effect (contactless) Protection degree: IP67 FUNCTIONAL SAFETY Circuit redundancy: two isolated and galvanically separated circuits Return to starting position: two independent springs BEST USES • Accelerator pedal for electronically controlled diesel engines subjected to emission standards from Stage IIIB on. • Accelerator pedal for electrically-driven vehicles • Inching pedal for work vehicles with hydrostatic transmission • Compliance of control devices with functional safety standards • Implementation of electronic drive-by-wire devices • Use of a reliable device in harsh environments • Technological upgrade of control pedals • Cost saving and space optimization for replacement of pedal solutions with separate sensor • Plug and play solution with integrated electronics
