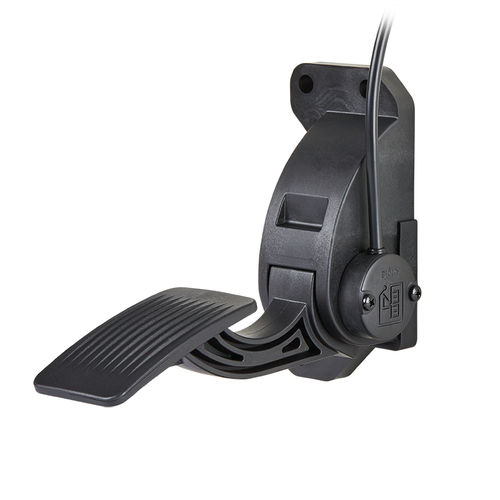

Accelerator pedal EIDOS

Hall effectsingle pedalsuspended

The Eidos series accelerator pedals are the ideal solution for manufacturers of off-road vehicles operating in harsh environments and requiring installation in front of the driving position. The product's architecture, with the electronic board directly integrated into the pedal's mechanical structure, allows for optimised mechanics, reducing the number of mechanical components in contact and subject to wear. SUITABLE FOR commercial vehicles, buses, telehandlers, street-sweepers, construction machines. FEATURES Supply voltage: 5 V; 12-24V; 24-48 V Output: single / double; option IVS signal Output types (programmable): voltage (0,5-4,5V; 0-10V) or current (4-20 mA) analog signal; PWM (0.1-1 kHz); CAN (SAE J1939 / CANopen) IVS types: single / double; NO / NC; dry contact / open drain; programmable switch threshold Cable and connector: customizable Operating principle: Hall effect (contactless) Protection degree: IP67 Circuit redundancy: two isolated and galvanically separated circuits Return to starting position: two independent springs BEST USES • Accelerator pedal for electronically controlled diesel engines subjected to emission standards from Stage IIIB on. • Accelerator pedal for electrically-driven vehicles • Inching pedal for work vehicles with hydrostatic transmission • Compliance of control devices with functional safety standards • Implementation of electronic drive-by-wire devices • Use of a reliable device in harsh environments • Technological upgrade of control pedals • Cost saving and space optimization for replacement of pedal solutions with separate sensor
