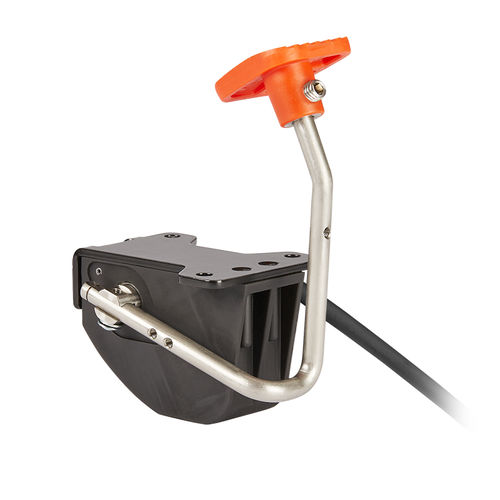

Accelerator pedal AGRIOS

Hall effectelectronicsingle pedal

The Agrios series accelerator pedals are metal lever pedals specifically designed for use on agricultural tractors and off-road vehicles. The Agrios pedals meet high standards of performance and quality, also thanks to the integrated architecture of the product, which places the electronic board directly inside the mechanical structure of the pedal. They can be mounted either on the wall or under the platform. SUITABLE FOR agricultural machinery, load lifting vehicles, vehicles for moving loads FEATURES Supply voltage: 5 V; 12-24V; 24-48 V Output: single / double; option IVS signal Output types (programmable): voltage (0,5-4,5V; 0-10V) or current (4-20 mA) analog signal; PWM (0.1-1 kHz); CAN (SAE J1939 / CANopen) IVS types: single / double; NO / NC; dry contact / open drain; programmable switch threshold Cable and connector: customizable Operating principle: Hall effect (contactless) Protection degree: IP67 Circuit redundancy: two isolated and galvanically separated circuits
