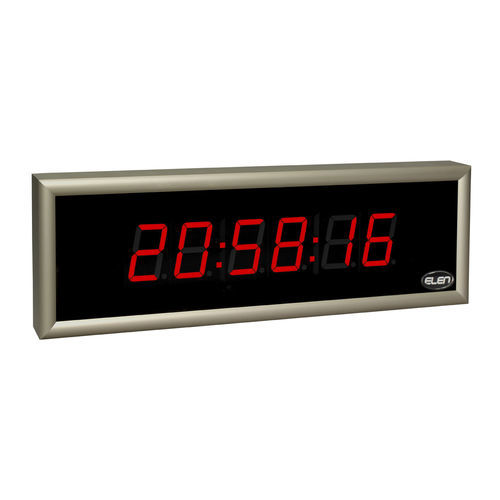

Wall-mounted clock NDC 57/6 R L20 12DC RS485

LEDdigitalnetwork

The NDC 57/6 R L20 12DC RS485 series digital LED wall clocks are electronic devices which primarily display the current time and date information, but can also be set and used as a stopwatch or countdown, count-up counter/timer. All clock‘s parameters, e.g. time, date, stopwatch, countdown, brightness, the type and duration of displayed information, etc., can be set with an IR remote control, via USB or RS485 connection with PC and special software application NDC_config. The RS485 serial bus interface with Modbus RTU communication protocol allows the clock to be built into a unified time system and synchronized with other clocks in the network, or the master clock. Main Features Digit height 57 mm, readability up to 23 m. Format: HH:MM:SS (hours : minutes : seconds) and DD:MM:YY (day : month : year). Displaying TIME, DATE, STOPWATCH, COUNT-UP/DOWN COUNTER. High brightness LED modules with wide viewing angle 120°. Alternating of displayed information and its duration can be set from 0 to 99 sec. Automatic or manual LED brightness control (built-in light sensor). Stylish frame made of anodized aluminum profile. Tinted acrylic glass with non-glare surface. Wireless setup using IR remote control or wired setup via USB or RS485 connection with PC. PC software application for setting displayed information and clock functions. RS485 communication interface allows building a unified time network and synchronization with Master clock or GPS receiver. Can be set as Count-up or Count-down timer/counter (with optional trigger input and Relay switch output). Built-in time scheduler for triggering alarm events, e.g. time breaks, work shifts (with optional Relay output).
