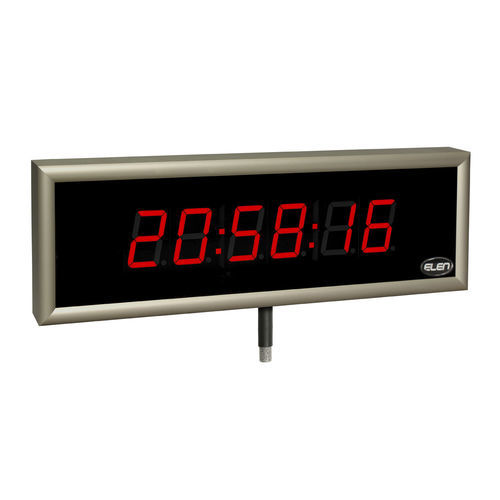

Wall-mounted clock NDC 57/6 THS R L20 12DC RS485

LEDthermometerhygrometer

The NDC 57/4 THS R L20 12DC RS485 series digital LED wall clocks are electronic devices which display the current time, date, temperature and relative humidity information. It can also be set and used as a stopwatch or countdown, count-up counter/timer. All clock‘s parameters can be set with an IR remote control, or via USB or RS485 connection with PC and special software application NDC_config. The clock is equipped with a RS485 interface, which allows its integration into a unified time system and synchronization with other clocks (e.g. Master clock) on the network using RS485 serial line connection with Modbus RTU communication protocol. Main Features Digit height 57 mm, readability up to 23 m. Format: HH:MM (hours : minutes), DD:MM (day : month), X.XX°C (temperature) and XX rH (relative air humidity in %RH) Displaying TIME, DATE, TEMPERATURE, HUMIDITY, (stopwatch, countdown/up counter). High brightness LED modules with wide viewing angle 120°. Alternating of displayed information and its duration can be set from 0 to 99 sec. Automatic or manual LED brightness control (built-in light sensor). Tinted acrylic glass with non-glare surface. Wireless setup using IR remote control or wired setup via USB or RS485 connection with PC. PC software application for setting displayed information and clock functions. RS485 communication interface allows building a unified time network and synchronization with Master clock or GPS receiver. Can be set as Count-up or Count-down timer/counter (with optional trigger input and Relay switch output). Built-in time scheduler for triggering alarm events, e.g. time breaks, work shifts (with optional Relay output).
