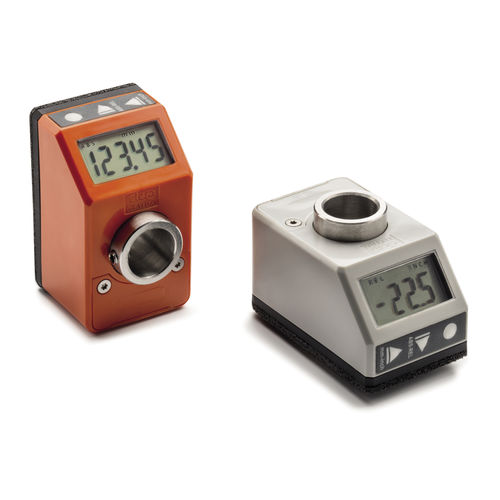

Position indicator DD51-E series

digitalhollow-shaft

BASE AND CASE High-resistance polyamide based (PA) technopolymer. Black base. Case in the following colours: - C2: RAL 2004 orange, glossy finish. - C3: RAL 7035 grey, glossy finish. Available on request in RAL 7021 grey-black colour (C1). Cover with perfectly sealed gasket and AISI 304 stainless steel UNI 6955 type self-tapping screws with six-lobe socket TORX®T06 (registered trademark by TEXTRON INC.). The ultrasonic welding between the base and the case prevents separation and avoids dust penetration. BOSS AISI 304 stainless steel with Ø 14 mm H7 reamed hole, fitting to shaft by means of AISI 304 stainless steel grub screw, hexagon socket and cup end UNI 5929-85, included in the supply. WINDOW Transparent polyamide based (PA-T) technopolymer, moulded over the case and with a perfect seal. Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations). DISPLAY - 5-digit LCD of 8 mm height and special characters. The visualization parameters can be set and modified by the operator by means of appropriate keys: - values displayed in mm, inches or degrees - display of mode for use (absolute or incremental mode) - reading orientation (right or reverse). KEYBOARD Polyester membrane. Resistant to solvents, alcohol, acids, alkalis. INTERNAL GASKET O-ring front sealing in NBR synthetic rubber, between the case and the bushing. Brass bushing with double O-ring sealing in NBR synthetic rubber inside the rear cavity of the base (DD51-E-SST-IP67). REAR GASKET Foam polyethylene, supplied.
