Position indicator DD51

analoghollow-shaft

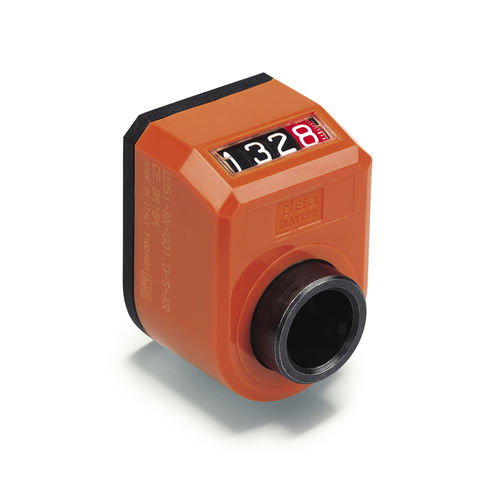

BASE AND CASE High-resistance polyamide based (PA) technopolymer. Black base. Case in the following colours: - C2: RAL 2004 orange, glossy finish. - C3: RAL 7035 grey, glossy finish. - C1: RAL 7021 grey-black, glossy finish. The ultrasonic welding between the base and the case prevents separation and avoids dust penetration. WINDOW Transparent polyamide based (PA-T) technopolymer, moulded over the case and with a perfect seal. Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations). DISPLAY It indicates the displacement of the mechanism controlled by the spindle from the start position (0). Four-digit roller counter. The digits of red rolls show the decimal values. An additional graduated scale next to the last decimal digit offers further accuracy of reading. The display can be in different positions (see "Table of the possible combinations"). - AN: inclined display, counter in upper position. - AR: inclined display, counter in lower position. - FN: front display, counter in upper position. - FR: front display, counter in lower position. INTERNAL GASKET O-ring front sealing in NBR synthetic rubber, between the case and the boss. REAR GASKET Foam polyethylene, supplied. STANDARD EXECUTIONS Boss with Ø 14 mm H7 reamed hole, fitting to shaft by means of a grub screw with hexagon socket and cup end, included in the supply. - DD51: black-oxide steel boss. - DD51-SST: AISI 303 stainless steel boss. DIRECTION OF ROTATION - D: clockwise. Increasing values with clockwise rotation of the boss. - S: anti-clockwise. Increasing values with anti-clockwise rotation of the boss. WEIGHT 42 grams.
