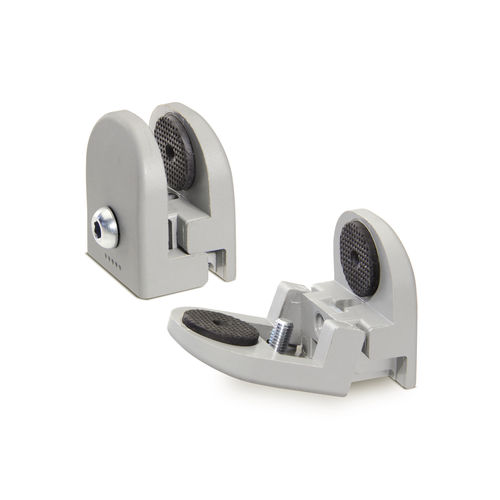

Panel support clamp PC series

stainless steel

MATERIAL Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7042 grey colour, matte finish. PADS Thermoplastic elastomer, hardness 80, Shore A, overmoulded. ADJUSTING SPACERS (INCLUDED IN THE SUPPLY) Polyamide based (PA) technopolymer, RAL 7042 grey colour, for fastening the clamp to panels of variable thickness (see table). FEATURES AND APPLICATIONS - The product is in compliance with the Machine Directive (2006/42/CE) that provides for the retention of all the clamping elements even in the open position (ELESA patent). The two parts of the clamp are connected by means of an articulated joint and they have got a seat for housing a steel or stainless steel screw and M5 nut. - The special dimensions of the clamp allow its assembly on profiles with a width of 25 mm or higher. - The panel assembly into the clamp does not require any drilling which may cause cracks in the panel. - The chemical bond of the overmoulded pads makes them a single body with the clamp. The embossed surface avoid any possible sticking of the pad to the panel over the time. - To prevent machine danger zones being reached through any opening in the machine protection structure made of panels fixed with the PC clamp, it is necessary to keep a safety distance (Fig. 4) according to ISO 13857, section 4.2.4 (the safety distance is the minimum distance required between a protection structure and a potentially dangerous component of the machine). SPECIAL EXECUTIONS ON REQUEST Black clamps.
