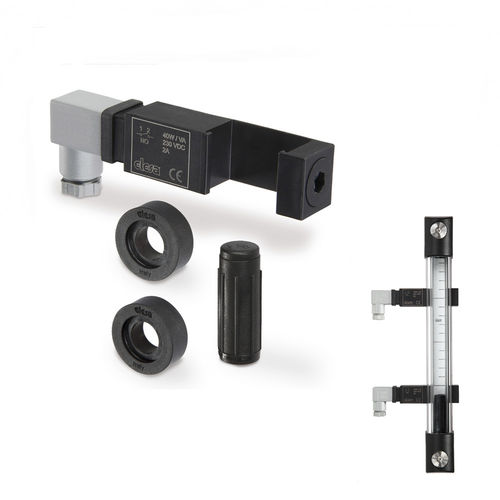

Electric control kit SLCK

fluid levelfor column level indicators

SENSOR HOLDER BRACKET In polyamide based (PA) technopolymer, black colour, watertight, with a built-in relay (reed) with two conductors wired to the two-pin connector. It can be moved along the axis of the indicator and secured in the preferred position with the appropriate screw (set screw) in technopolymer. ELECTRIC SENSOR - NO: the electric circuit closes on reaching the preset level. - NC: the electric circuit opens on reaching the preset level. CONNECTOR With built-in cable gland and contact holder. Front or axial output (high or low) ensuring protection against water sprays (protection class IP 65 according to table EN 60529 on page A-18) that can be increased during installation with the necessary adjustments. NBR synthetic rubber packing rings. FLOAT Polypropylene based (PP) technopolymer, max temperature limit 80° C or polyamide based (PA) technopolymer, max temperature limit 120°C, max chemical compatibility, black colour. The float incorporates a magnetic element to activate the electric contact. When the float reaches the intervention level set by the user, by suitably positioning the sensor holder along the axis of the indicator, the electrical contact activates. Max operating pressure 2 bar (operation with oil) SPACERS In polyamide based (PA) technopolymer. Essential in cases where the reservoir is made out of ferromagnetic material in order to prevent the interaction between the magnet and the metal mass of the reservoir.
