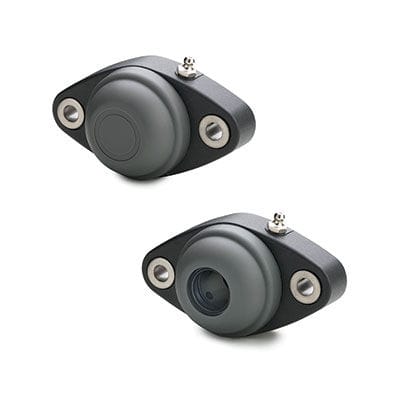

Stainless steel bracket UCFL

steelflangeself-aligning

BRACKET Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. BUSHINGS AND WASHERS AISI 304 stainless steel. BEARING High quality with traceability codes. Chrome steel. LUBRICATOR Nickel-plated brass. PACKING RINGS NBR rubber. COVER Glass-fibre reinforced polypropylene based (PP) technopolymer, RAL 7015 grey colour, matte finish. Closed cap for head bracket or for pass-through shafts. STANDARD EXECUTIONS - UCFL-T: head bracket with closed cap. - UCFL-P: bracket for pass-through shaft with drilled cover and NBR rubber packing ring for rotating shafts. FEATURES AND APPLICATIONS Overall dimensions are in compliance with ISO 3228. A system of completely sealed packing rings assures the protection of the bearing from dirt ingress. Max shaft misalignment = 2,5°. INSTRUCTIONS OF USE Assembly with shafts without end stops. For optimum operation, we recommend periodic lubrication with a common grease resistant to high temperatures and oxidation. SPECIAL EXECUTIONS ON REQUEST - AISI 440C stainless steel bearing. - Bearing in inch sizes. - Brackets for shafts with diameters in different sizes. - Brackets in polypropylene based (PP) technopolymer, packing rings and oil seal in VITON®*. * Registered trademark by DuPont Dow Elastomers.
