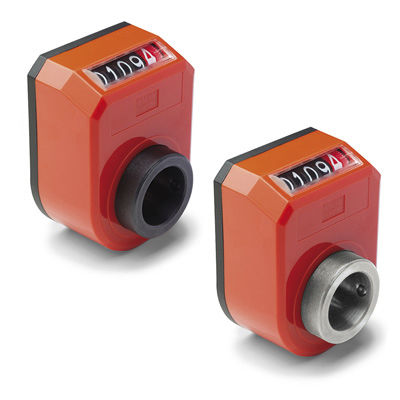

Position indicator DD52R

digital

DD52R direct drive digital position indicators have 5-digit counter. case available in the following colours: C2: RAL 2004 orange, glossy finish. C3: RAL 7035 grey, glossy finish. C1: RAL 7021 grey-black, glossy finish. The ultrasonic welding between the base and the case prevents separation and avoids dust penetration. Display, which can be mounted in different positions, indicates the displacement of the mechanism controlled by the spindle from the start position (0). Five-digit roller counter: four black rolls and one red roll or three black rolls and two red rolls. The digits of red rolls show the decimal values. An additional graduated scale next to the last decimal digit offers further accuracy of reading. Direct drive digital position indicators can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications.
