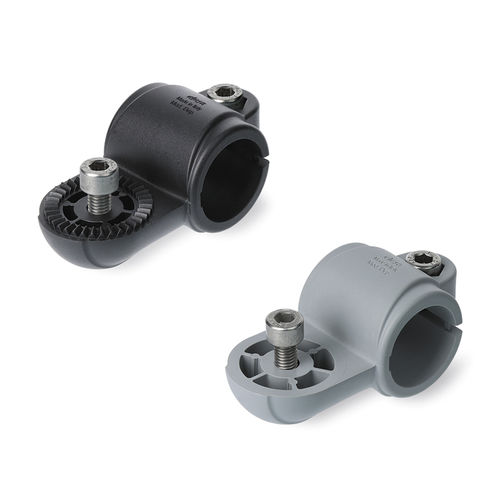

Glass-fiber reinforced polyamide tube connector TCC-TP

Clamp: Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish. Screws and nuts: Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment. Self-locking nuts in AISI 304 stainless steel. Supplied: two screws and two nuts for versions TCC-TP-E and TCC-TP-S, one screw and one nut for version TCC-TP-I. Standard executions: TCC-TP-E: external teeth. TCC-TP-I: internal teeth. TCC-TP-S: without teeth. Features: Two clamps, one with external teeth and one with internal teeth or two without teeth, can be joined to create a hinged joint. Joints comprising clamps with external/internal teeth (36 teeth) have a 10° adjustment angle. Joints comprising clamps without teeth can be positioned at any angle. Clamps for tubes with a diameter of 30 ± 0.2 mm. For smaller diameter tubes, the hole reduction sleeve can be used TCC-A (to be ordered separately).
