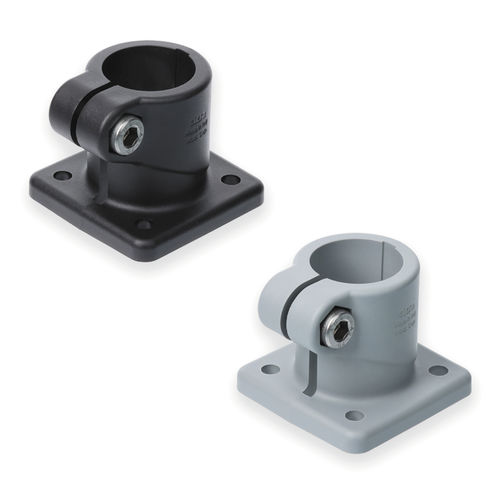

Base piece tube connector TCC-AB
roundglass-fiber reinforced polyamidetechnopolymer

Base piece tube connector - TCC-AB - ELESA - round / glass-fiber reinforced polyamide / technopolymer
Base piece tube connector - TCC-AB - ELESA - round / glass-fiber reinforced polyamide / technopolymer
Base piece tube connector - TCC-AB - ELESA - round / glass-fiber reinforced polyamide / technopolymer - image - 2
Base piece tube connector - TCC-AB - ELESA - round / glass-fiber reinforced polyamide / technopolymer - image - 3
Add to favorites
Compare this product

Go to the ELESA website for more information

Characteristics

Structure
round
Material
glass-fiber reinforced polyamide, technopolymer
Other characteristics
screw-in, base piece
Diameter

18 mm, 30 mm
(0.709 in, 1.181 in)

Description

Clamp: Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish. Screw and nut (supplied): Cylindrical-head screws with hexagon socket in AISI 304 stainless steel with anti-seizure treatment. Self-locking nut in AISI 304 stainless steel. Features: Clamps for tubes with a diameter of 18 ± 0.2 and 30 ± 0.2 mm. For smaller diameter tubes, the hole reduction sleeves TCC-A can be used (ordered separately).
