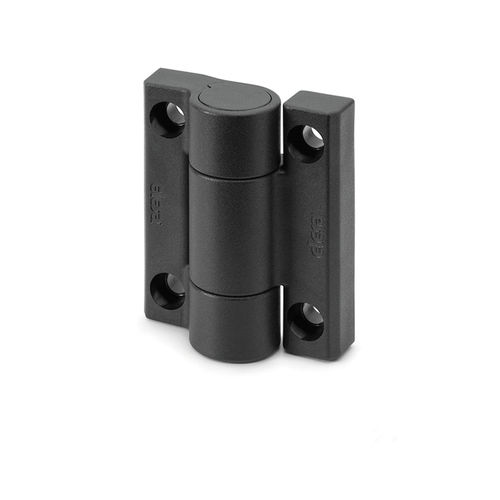

Damper hinge CFAM.

cornerpolyamidefiberglass

Material Glass-fibre reinforced polyamide (PA) technopolymer body, black colour, matte finish. Shock absorber Silicon oil base Standard executions Pass-through holes for M6 cylindrical head screws. CFAM-O-NC: for applications with horizontal axis, soft return on closing. CFAM-O-NO: for applications with horizontal axis, soft return on opening. CFAM-V-NC: for applications with vertical axis, soft return on closing. CFAM-V-NO: for applications with vertical axis, soft return on opening. Suffix to indicate the shock absorber torque value: 080: final damping torque 0.8 Nm. 300: final damping torque 3.0 Nm. Rotation angle (approximate value) Max 110° (0° and +110° being 0° the condition where the two interconnected surfaces are on the same plane). The hinge can also allow an extra -5° to compensate for any misalignments of the frames. Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance. Damping angle Damping occurs only in one direction depending on the chosen execution (NO or NC) as indicated in the drawings. Allow the hinge to close and open freely, without forcing it. Features and performances The CFAM hinge is used to cushion the re-closing or re-opening of doors with vertical axis (CFAM-V) or of hatches with horizontal axis (CFAM-O) by means of the shock absorber. The damping torque varies progressively with the rotation of the hinge, from a minimum to a maximum value as indicated in the drawing. In specific fatigue stress tests, the damper has exceeded 20,000 / 30,000 cycles while maintaining the nominal value of the damping torque.
