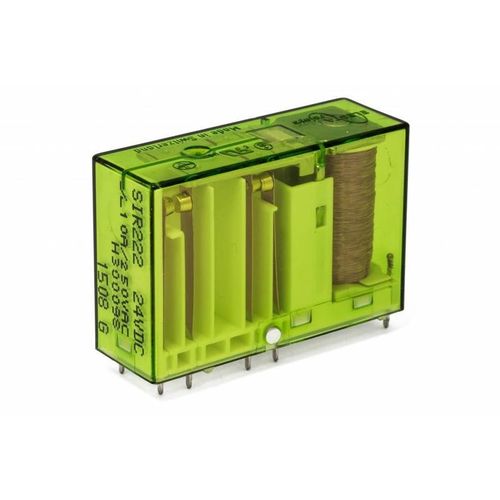

24 Vdc electromechanical relay SIR222 SEN12 Vdc6VDC48VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24 Vdc, 12 Vdc, 6VDC, 48VDC, 5 VDC, 60VDC, 9VDC
- Contact configuration
- 2 NO, 2 NC, 3 NO/NC
- Features
- compact
- Mounting
- for printed circuit boards
- Other characteristics
- with guided contacts, IEC
- Switching current
Max.: 10,000 mA
Min.: 10 mA
Description
The SIR 222 SEN is a powerful, compact, four-pole relay with forcibly guided contacts to IEC 61810-3 for switching loads up to 10 A. Crown contacts ensure high switching reliability. Thanks to the sensitive coil, it has a large coil working range.
Switching current: 10mA - 10A
Nominal coil power: 360mW
Test voltage (rms): 5000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
