24 Vdc electromechanical relay SIR222 P12 Vdc110VDC48VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24 Vdc, 12 Vdc, 110VDC, 48VDC, 5 VDC, 60VDC
- Contact configuration
- 4 NO, 2 NC, 1 NO/NC
- Features
- compact
- Mounting
- for printed circuit boards
- Other characteristics
- with guided contacts, IEC
- Switching current
Min.: 10 mA
Max.: 12,000 mA
Description

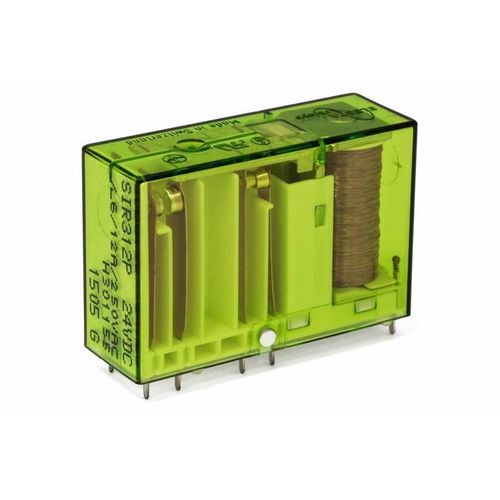

Extremely powerful, compact, four-pole power relay with forcibly guided contacts according to IEC 61810-3 for switching loads up to 12 A. Two output contacts for loads with high peak current (up to 60 A) in the AC and DC range and two control contacts. Crown contacts ensure high switching reliability. The relay has a large coil operating range.
Switching current: 5mA - 12A
Nominal coil power: 750mW
Test voltage (rms): 5000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
