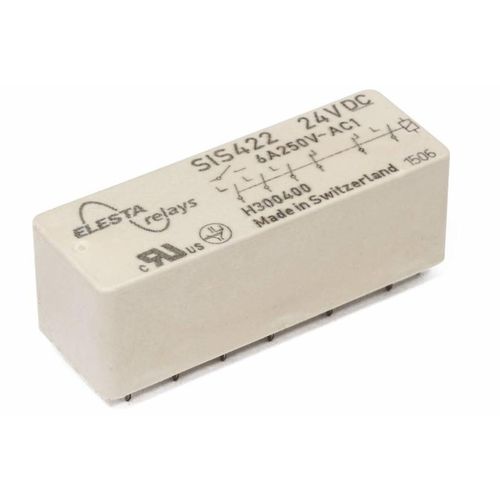

24 Vdc electromechanical relay SIS42212 Vdc110VDC48VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24 Vdc, 12 Vdc, 110VDC, 48VDC, 5 VDC, 3VDC, 60VDC
- Contact configuration
- 4 NO, 2 NC
- Features
- compact
- Mounting
- surface-mount
- Other characteristics
- with guided contacts, IEC
- Switching current
Min.: 3 mA
Max.: 6,000 mA
Description
The six-pole relay SIS 422 with forcibly guided contacts according to IEC 61810-3 has a very compact design. In addition to the small dimensions the relay series impresses with high shock resistance a large excitation voltage range low coil power loss and high switching reliability due to the notched crown contact.
Switching current: 3mA - 6A
Nominal coil power: 660mW
Test voltage (rms): 4000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
