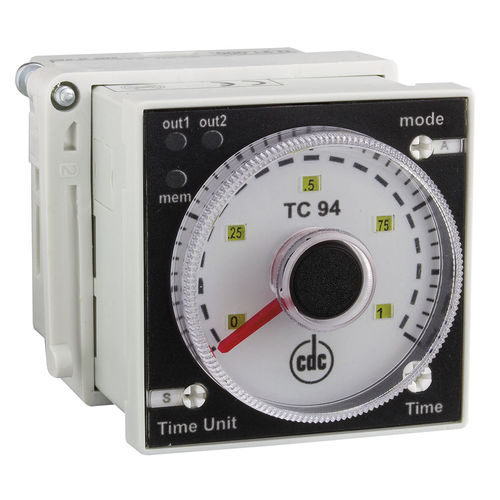

Digital timer TC94analogmulti-functionDIN rail
Add to favorites
Compare this product
Characteristics
- Technology
- digital, analog
- Function
- multi-function
- Mounting
- DIN rail, wall
- Voltage
24 V, 230 V
Description
Microcontroller based digital timer. Analog time setting knob S, St, R controls. 5 full scale available. 6 time unit available: s, sx10, m, mx10, h, hx10. Setting time from 0s to 240h. A, C, L / M, T, Ci, J, W, St , D / K, Sm 15 functions available.
Direct reading of the past and residual time throught 19 leds bar. 5 leds backlight scale.
Memory can be activate/disactivated by dip switch. 24 ÷ 240 Vac/dc Multivoltage. 2 Output relay NO/NC. 3 leds on front point out the presence of the memory and the state of the relay.
Undecal socket. Wall / DIN rail mounting. Special frontmask suitable for setting protection of the parameters. Fully compatible with old version TC93.
