Multiple solenoid valve VMM
direct-operated2-wayfor gas

Multiple solenoid valve - VMM - Elettromeccanica Delta S.p.A. - direct-operated / 2-way / for gas
Multiple solenoid valve - VMM - Elettromeccanica Delta S.p.A. - direct-operated / 2-way / for gas
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Medium
for gas, air
Body
compact
Other characteristics
multiple, fast-opening, slow-opening
DN

Max.: 80 mm
(3.15 in)

Min.: 15 mm
(0.591 in)

Voltage

24 V, 110 V, 120 V, 230 V

Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Pressure

Max.: 500 mbar
(7.3 psi)

Min.: 0 mbar
(0 psi)

Description

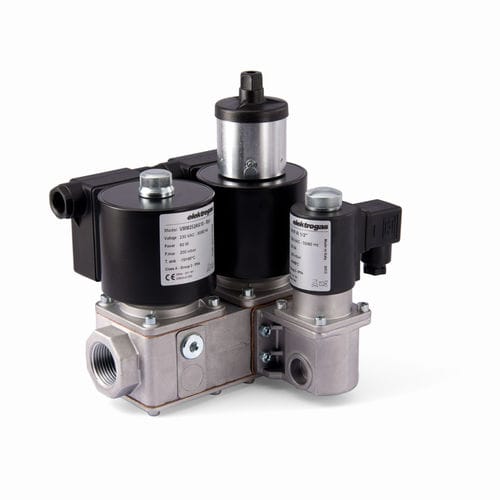

VMM Multiple safety solenoid valve for gas regulating trains The VMM type valve is a combination of two valves in an only compact and versatile valve housing. The first valve is a fast opening safety solenoid valve. The second valve may be a fast opening or a slow opening solenoid valve to adjust the gas flow, with a first adjustable fast stroke and a second adjustable slow stroke. It is possible connect a third by-pass / pilot valve, which performs by driver stage or to obtain a second fast (slow) stroke or both. This type of device is suitable for gas and air blocking and adjusting controls in atmospheric burners or fan-assisted burners (with one or two stage operation), in industrial kilns and in all gas equipments which use regulating trains. CE approved FM approved EAC approved
