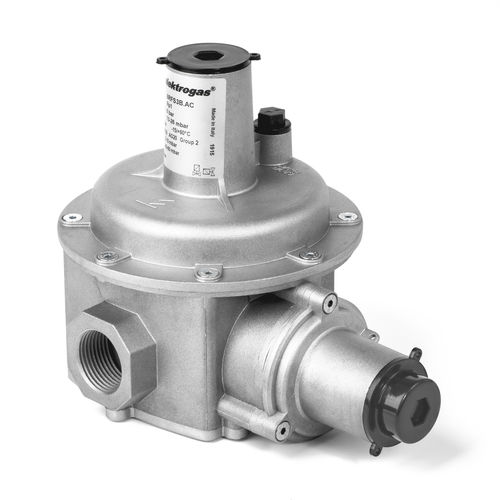

Gas pressure regulator RFS
diaphragmsingle-stageindustrial

gas pressure regulator
gas pressure regulator
Add to favorites
Compare this product


Characteristics

Product
gas
Technology
diaphragm
Number of stages
single-stage
Applications
industrial
Other characteristics
with filter
Pressure

Max.: 6 bar
(87.02 psi)

Min.: 0 bar
(0 psi)

Orifice diameter

Max.: 80 mm
(3.15 in)

Min.: 40 mm
(1.575 in)

Description

RFS Gas pressure regulators with filter and safety shut- off valve *** Work in progress *** RFS is a regulator with on board filter and safety shut-off valve. In order to assure the safest working conditions, shut-off valve and regulating member are totally independent. All models are equipped with compensation diaphragm to assure high accuracy and are designed to perform lock-up function. Max inlet pressure 500 mbar outlet pressure 8..260 mbar* Accuracy: class A Max inlet pressure 6 bar outlet pressure 13..650 mbar* Accuracy: AC10 or 20* – SG30 Shut-off valve: min 8..80 mbar* max 35..1000 mbar* AG20 or 30* (*) depending on spring (**) in progress
