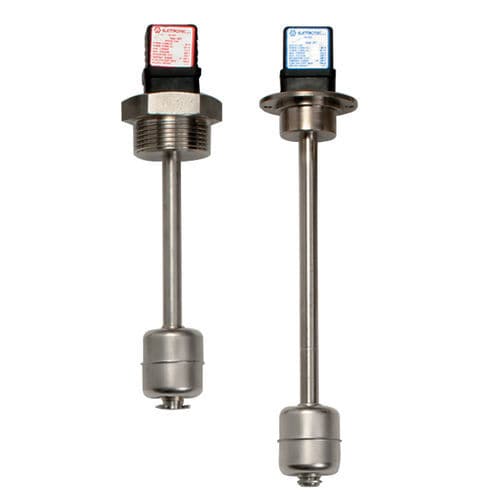

Magnetic float level switch LM1FIA150for liquidsstainless steelthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- stainless steel
- Mounting
- threaded, flange
- Other characteristics
- IP65
- Process temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)
Description
Actuation point - LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Mounting - FIA – Flange Ø 52 / TIA – Thread G1 1/4” / PTIA – Thread G1”
Electrical connection - DIN 43650 – PG09 – IP65
Switching capacity - LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current - LM1/LMM1- 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage - 220V – 50Hz
Fluid specific gravity - FIA/TIA – 0.7 kg/dm3 / PTIA – 0.8 kg/dm3
Fluid viscosity - 150 cSt
Certification - FIA/TIA – RINA – Lloyd’s Register – Germanischer Lloyd
Size - Max. lenght 1500 mm
Catalogs
Float level switches
63 Pages
