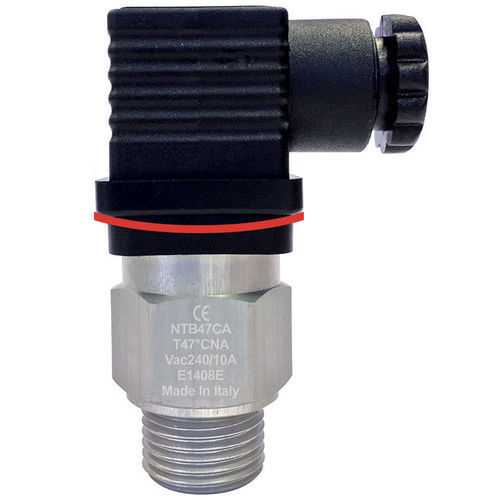

Differential temperature switch NTBNONCDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- differential
- Contact type
- NC, NO
- Mounting
- DIN rail
- Process connection
- G 1/2, G 3/8
- Material
- brass, aluminum
- Protection level
- IP65
- Temperature
Min.: 25 °C
(77 °F)Max.: 120 °C
(248 °F)- Switching power: current
5 A, 10 A
- Switching power : voltage
12 V, 24 V, 240 V
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)
Description
Temperature switches with fixed set-point and 360° rotating head
Accuracy - ± 5°C
Max. differential DT - 16°C
Contact - NO – NC
Body material - Anodized aluminium
Thread connection - G3/8″ – G1/2″ – M22 x 1.5 mm
Protection - IP65
Dimensions - Body Ch 27 – Height 74 mm (NTB) – 84 mm (NTBM)
Options - Execution with optional magnet brass body
Catalogs
Temperature switches
13 Pages
