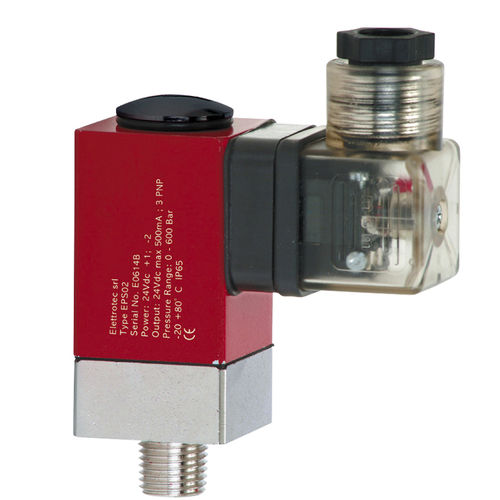

Piezoresistive pressure switch EPS02 serieselectronicPNPtransistor
Add to favorites
Compare this product
Characteristics
- Technology
- electronic, piezoresistive
- Contact type
- NC, NO, PNP, NPN, transistor
- Mounting
- flange
- Process connection
- G 1/4
- Fluid
- for gas
- Material
- steel
- Protection level
- IP65
- Other characteristics
- flange
- Pressure range
Min.: 0 bar
(0 psi)Max.: 650 bar
(9,427.45 psi)- Switching power: current
25 mA
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Electronic pressure switch with ceramic sensor
Power supply 24Vcc ±15%
Current consumption 25mA
Pressure indication Bar
Accuracy ±0,5% fs a 25°C
Materials of construction Body: red anodized aluminium Flange: AVP nickel-plated steel Sensor: piezoresistive ceramic cell Al2O3 Seal gasket: NBR (standard)
Protection class IP65
Electrical connection DIN43650
Output 1 NPN or PNP Transistor Output, max. 500mA; NO or NC contact
Weight 200 grams
Certifications CE
Harmonized standards EN 61000-6-3; EN 55022+A1+A2; EN 61000-6-1, EN 61000-4-2+A1+A2; EN 61000-4-3; EN 61000-4-4+A1+A2; EN 61000-4-5+A1; EN 61000-4-6+A1
