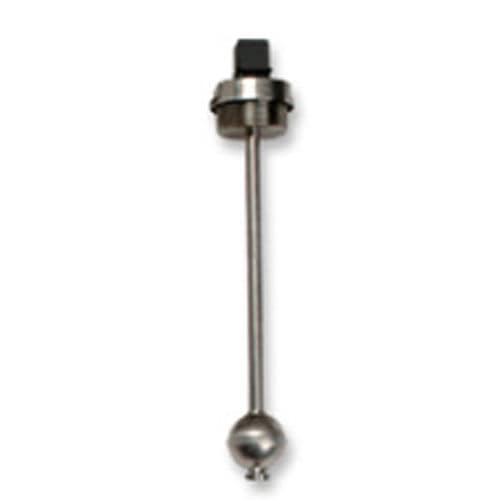

Float level sensor SL1FIA for liquids4-20 mAflange-mount
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Interface
- 4-20 mA
- Other characteristics
- stainless steel, flange-mount, IP65
- Level range
Min.: 300 mm
(11.81 in)Max.: 2,500 mm
(98.43 in)- Process pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.04 psi)- Process temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)
Description
Stainless Steel Level Sensors
MaterialsStem, float, connection: 316 Stainless SteelGasket: FKM
Sensor distance SL1 – 15mm SL2 – 10mm
Connection FIA – Ø92 flange TIA – G2” thread
Output Potentiometric
Signal converter - -
Protection IP65 EN60529 – PG09
Power supply - -
Fluid specific weight ³ 0.8
Fluid viscosity Max 150 cSt
Certifications and Approvals - -
Size Min length 300mm – Max length 2500mm
