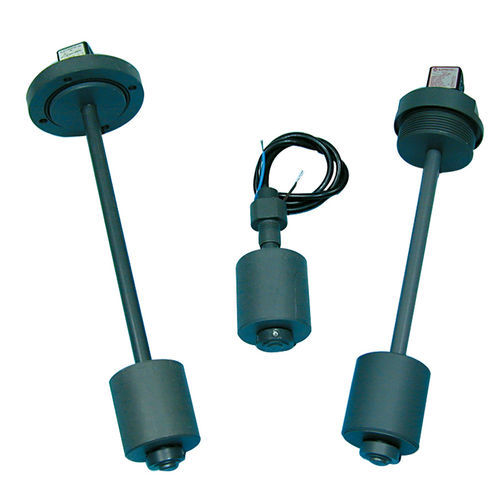

Magnetic float level switch LM1GSPAfor liquidsPVCthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- PVC
- Mounting
- threaded, flange
- Other characteristics
- IP65
- Process temperature
Min.: -5 °C
(23 °F)Max.: 50 °C
(122 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 5 bar
(72.52 psi)
Description
PVC Level Switches
Materials of constructionAll PVC
Actuation points LM1 – 1 actuation point N.C./N.O. contact LM2 – 1 actuation point SPDT contact LMM1 – 2 actuation points N.C./N.O. contacts
Mounting GSPA – G3/8” thread connection GPA – Ø 92 flange GTPA – G2” thread connection
Electrical connection GSPA: 500mm leads (standard) GPA/GTPA: DIN 43650 – PG09 –
Switching capacity LM1/LMM1 - 60W/VA LM2 - 30W/VA
Current LM1/LMM1- 0,8A (resistive) LM2 - 0,5A (resistive)
Max voltage 220V – 50Hz
Fluid specific weight ³ 0.85
Fluid viscosity 150 cSt
Certification and approvals - -
Size Max possible length 2500mm
