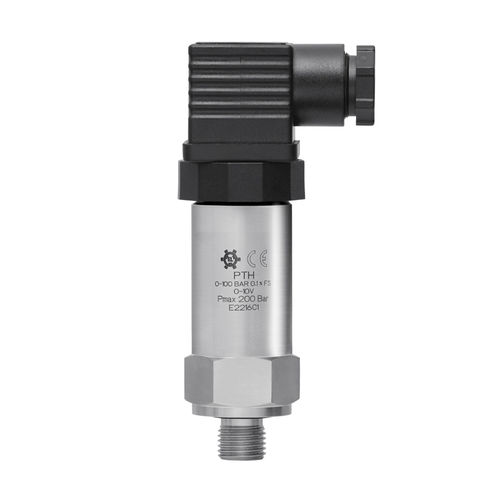

Relative pressure transducer PTH4-20 mA0-10 VG 1/4
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Output
- 4-20 mA, 0-10 V
- Process connection
- G 1/4
- Fluid
- for air, for water, for oil
- Material
- stainless steel
- Protection level
- IP65
- Other characteristics
- CE
- Pressure range
Min.: -1 bar
(-14.5 psi)Max.: 1,000 bar
(14,503.77 psi)- Precision
0.1 %, 0.5 %
- Long-term stability
0.25 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 135 °C
(275 °F)
Description
Supply voltage - 24 Vdc
Wiring protection - Against reverse polarity on power supply and short-circuit on output signal
Tightening torque - ≤ 20Nm
Response time - ≤ 5 ms
Output type - Voltage 0-10V 3 poles minimum load 5KΩ – Current 4/20mA 2 poles I ≤ 20 mA
Body material - Stainless steel AISI 316
Sensor material - Silicone
Dimensions - Body Ch. 24 Max. height 60mm
Certifications - CE
