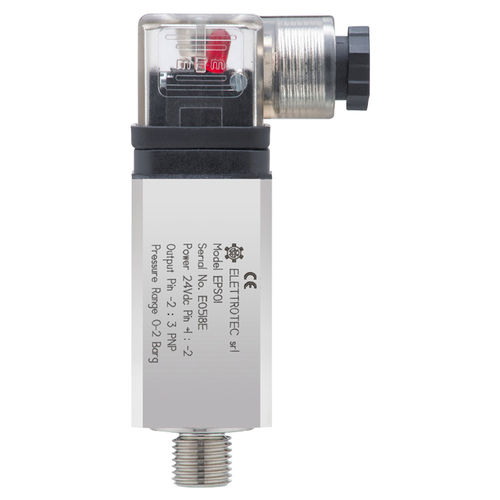

Piezoresistive pressure switch EPS01 series electronicPNPNO
Add to favorites
Compare this product
Characteristics
- Technology
- electronic, piezoresistive
- Contact type
- NC, NO, PNP, NPN
- Process connection
- G 1/4
- Material
- brass
- Protection level
- IP65
- Pressure range
Min.: 0 bar
(0 psi)Max.: 400 bar
(5,801.51 psi)- Switching power: current
12 mA
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Power supply - 24Vcc ±15%
Current consumption - 12mA
Materials of construction - Body: nickel-plated brass Sensor: piezoresistive ceramic cell Al2O3Seal gasket: NBR
Output - 1 NPN or PNP Open Collector Output, max 500mA; NO or NC contact
Dimensions - 30mm wide x 99mm high
Weight - 250 grams
Certifications - CE
Harmonized standards - EN 61000-6-3; EN 55022+A1+A2; EN 61000-6-1, EN 61000-4-2+A1+A2; EN 61000-4-3; EN 61000-4-4+A1+A2; EN 61000-4-5+A1; EN 61000-4-6+A1
