Position indicator IZ16ELCD displaypanel-mountbattery-powered
Add to favorites
Compare this product
Characteristics
- Measured value
- position
- Display
- LCD display
- Type
- panel-mount
- Other characteristics
- battery-powered
- Applications
- for encoders
Description

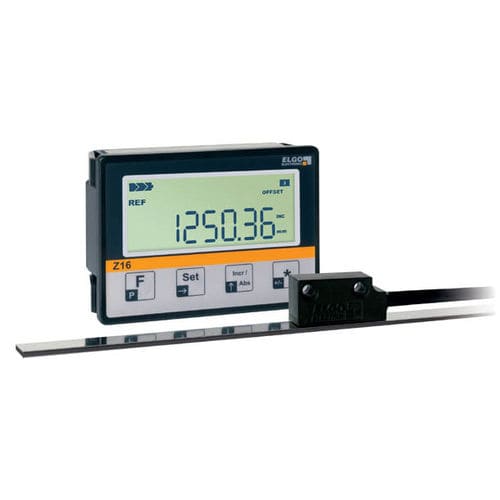

The battery powered IZ16E system consists of a large 7 digit LCD display and an incremental magnetic sensor (resolution 0.1 mm) for position measurement. No wiring required.
- 7 digit LCD display with sign and special characters
- Battery status and angle display
- Easy mounting via snap-in housing (compatible to Z16)
- Configurable display-modes: mm / m/ inch with fraction display
- Adjustable counting direction
- Adjustable decimal point and multiplication factor
- Keylock
- Adjustable reference value
- Switch-over between incremental and absolute measuring
- 3 adjustable tool offsets
- Optional: 2 external inputs for special characters via RJ45
- Optional: 2 external outputs via RJ45
- Available interfaces: RS232 / RS485 / RF868 MHz
