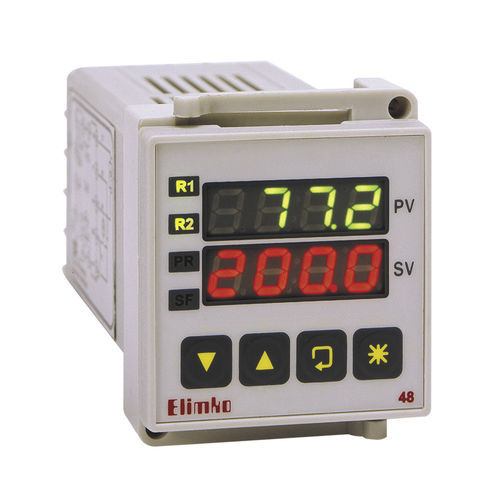

Digital indicator controller E-48 series

temperatureuniversalpressure

E-48 Series controllers are designed using new generation micro-controllers for on/off and PID control. The unit has dimensions of 48x48 mm, conforming IEC/TR 60668. E-48 Series have a 2x4 digits LED display range between –1999 and +9999, configurable universal inputs (T/C, R/T, mV, mA) with 16 bit resolution, low calibration drifts with environmental conditions. E-48 Series controllers have easy programming facilities to provide on/off and PID forms and are used in every field of industry for measurement and control of temperature, pressure, level, current, voltage, resistance and other process parameters in industries such as iron & steel, cement, plastic, chemistry, metallurgy, petrochemical plants, refineries, ceramic, glass and others. • Accuracy Class 0.5 • Display Resolution 1/9999 • Display 2x4 Digit LED (7 mm) • A/D Conversion 16 bit • D/A Conversion 12 bit • Reading Speed 2 readings / second • Input Resistance T/C, mV ≥ 1 MΩ mA, ≤ 51 Ω • Noise Suppression 120 dB 50 Hz • Operating Temperature -10 ... 55°C • Temperature Comp. 0 ... 50°C • Power Supply 85-265 V AC / 85-375 V DC 20-60 V AC / 20-85 V DC • Power Consumption Max. 7 W • Input Signal T/C, R/T, mA, mV
