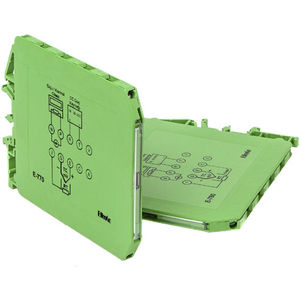

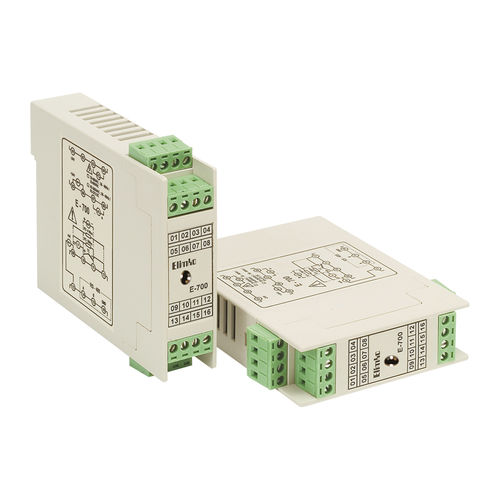

Analog signal converter E-700 series

pulseDIN railRS485

E-700 Series signal converters are new generation microcontroller based industrial instruments in a plastic case suitable for rail mounting. E-700 Series are general purpose converters which can be used to convert thermocouples, resistance thermometers and other sensor voltages, currents or pulses to standard currents. The configuration of the converter is performed by PC using a software program supplied by Elimko. USB connection hardware is also available from Elimko. The E-700 Series have a wide-range of applications, especially for integration of SCADA, DCS, PLC systems through RS485 interface unit. Filtering features avoid the effect of electrical noise activity in industrial areas. Accuracy Class 0.5 Noise Suppression 120 dB 50 Hz Operating Temperature -10 °C ... 55 °C Temperature Comp. %0.01 / °C CJ Error 0.2 °C / °C Operating Temperature -25 °C ... 65 °C Sensors T/C R/T, resistance mV, V mA pulse Loadcell Power Supply 85-265 V AC / 85-375 V DC 20-60 V AC / 20-85 V DC Output 0-20 mA / 4-20 mA 0-10 V DC Output Mode Direct / Reverse programmable Input / Output Isolation 750 V AC R/T Line Resistance Max. 100 Ω T/C Line Resistance Max. 100 Ω Linearization On/Off (programmable T/C and R/T) Programe Interface USB Power Consumption 4 W Mounting Snaps on M36 DIN (EN 50022) Rails Protection Class IP 20 Weight 140 gr
