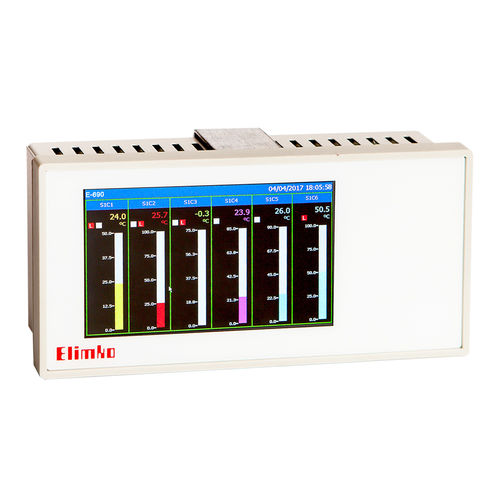

Voltage data logger E-690 series

flowpressuretemperature

E-690 Series universal data loggers/scanners are advanced new generation micro-controller based industrial instruments. The universal inputs and outputs of the instrument can be easily programmed by the user. E-690 Series indicate measurements has 6, 12, 18, 24, 30 or 36 channels universal input, 2 common alarm relays and independent alarm relays up to 6, 12, 18 pieces, with its I/O cards easily plugged in or out by users. It has a wide range of use in Iron-Steel, Chemistry, Metallurgy, Petro-Chemistry, Refineries, Food, Cement, Ceramics, Glass and other industrial branches for monitoring and transferring and recording data to a computer of physical units such as temperature pressure, level, flow rate and voltage. It is an advanced instrument ensuring transferring of data to a computer via RS-485 and Ethernet connection. Accuracy Class 0.5 Relay Outputs SPST-NO ; 250 V AC, 5 A Relay Outputs Numbers Max. 18 relay outputs (Depends on the selected configuration) Analog Digital Converter 16 bit Analog Input Numbers Max. 36 analog input (Depends on the selected configuration)
