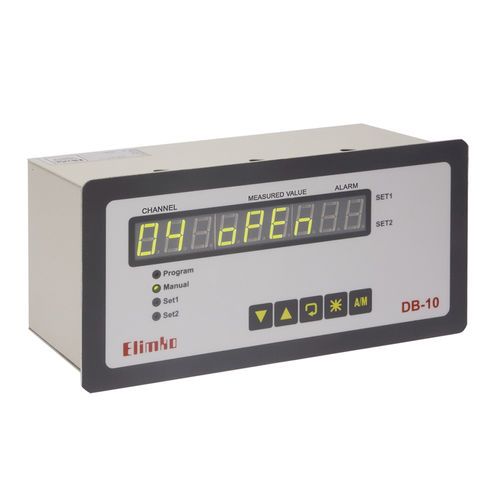

Analog output flow computer E-DB-10 series

E-DB-10 Series Flow Computer is designed using new generation micro-controllers for flow measurement needs with temperature and pressure compensation. E-DB-10 Series dimensions are 96 x192 mm, conforming to IEC/TR 60668. The instrument’s universal inputs and outputs can be easily programmed by the user. The unit has a 4 digit flow rate and 8 digit totalizer display. The relationship between the analog input and flow rate can be programmed as either a linear function or square root function. The engineering unit of flow rate can be selected as units/second, units/minute, units/hour. • High reading sensitivity with 16 bit resolution • Temperature & pressure compensation • Infinite lifetime and high isolation voltage semiconductor multiplexer relay • Standard RS485 MODBUS communication interface. • 2 alarm relay outputs. • Optional current output • Programmable display • Possibility of connecting up to 31 instruments to a PC by the same communication line. • Distributed system structure.
